The AECharger™ Programmable DC Power Supply & Lithium Battery Charger is a constant-voltage / constant-current (CV/CC) regulated charger designed for serious users who want full control over battery charging and power delivery.

Unlike automatic “smart” chargers that lock you into fixed profiles, the AECharger allows you to manually set voltage and current limits, making it ideal for lithium battery charging, controlled battery testing, and bench power applications. The charger automatically transitions between constant current (CC) and constant voltage (CV) modes based on load conditions, helping protect batteries while maintaining stable output.

Because charging parameters are user-defined, the AECharger works across multiple battery chemistries and voltage levels, including lithium-ion, LiFePO₄, AGM, SLA, and traditional lead-acid automotive batteries.

This is the same type of charger trusted on workbenches — not dashboards.

---

KEY FEATURES

• Programmable Lithium Battery Charger

  • User-defined voltage and current limits

  • Ideal for lithium packs requiring precise control

• Multi-Chemistry Compatibility

  • Lithium (Li-ion, LiFePO₄ – user configured)

  • AGM & SLA batteries

  • Traditional lead-acid automotive batteries

• CV / CC Intelligent Regulation

  • Automatic constant current → constant voltage switching

  • Visual indicators for operating mode

• Built-In Protection Systems

  • Over-current protection (OCP)

  • Short-circuit protection

  • Over-temperature protection

  • Over-voltage safeguards

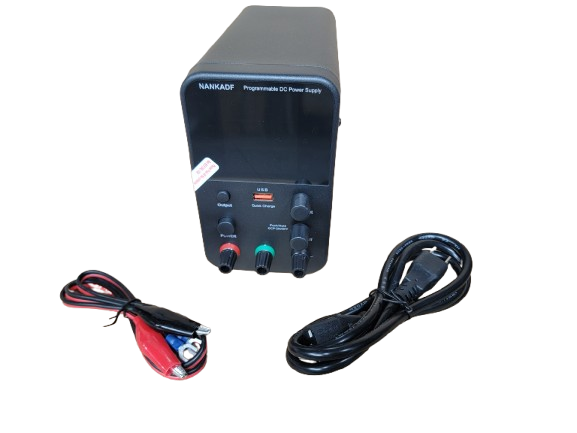

• Real-Time Digital Monitoring

  • Displays voltage, current, and power

  • Easy-to-read front panel

• Bench Power Supply Capability

  • Stable DC output for electronics testing and diagnostics

• USB Fast-Charge Port

  • Integrated USB output for accessories or devices

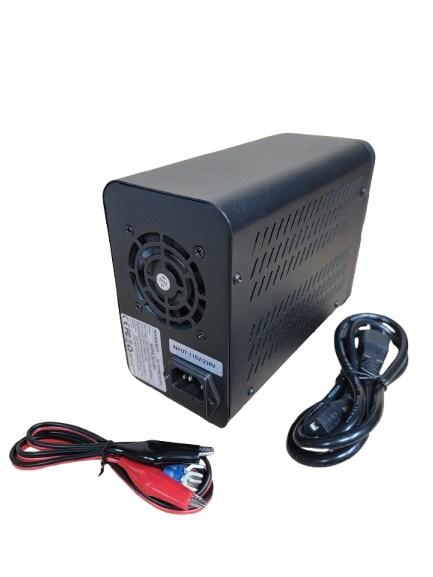

• Active Cooling

  • Temperature-controlled internal cooling fan for extended runtime

---

LITHIUM CHARGING QUICK-START

⚠️ Read before charging lithium batteries

Basic Lithium Charging Setup (example – LiFePO₄ 12V pack):

1. Set voltage to manufacturer-recommended charge voltage (ex: 14.2–14.6V)

2. Set current limit based on battery capacity (ex: 10–20% of Ah rating)

3. Connect battery with correct polarity

4. Enable output

5. Charger will operate in CC mode, then switch to CV mode automatically

❗This charger does not automatically detect battery chemistry.
Correct settings are the responsibility of the user.

---

IMPORTANT SAFETY NOTICE

⚠️ This is a programmable charger, not an automatic smart charger.

• Users must set correct voltage and current limits

• Incorrect settings may damage batteries or connected equipment

• Always verify polarity before enabling output

• Recommended for users familiar with basic electrical concepts

• Always read the included manual before use

This level of control is exactly why the AECharger works so well for lithium batteries — but it requires responsible configuration.

---

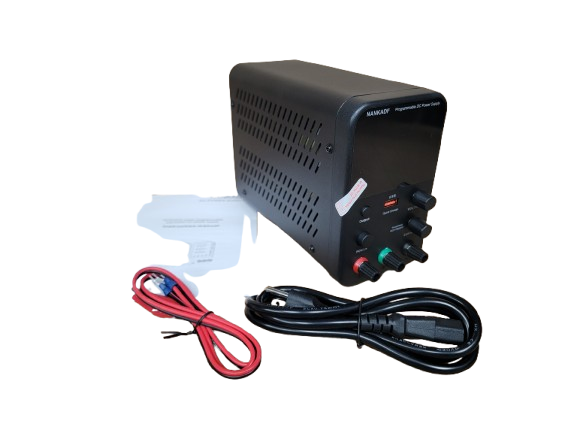

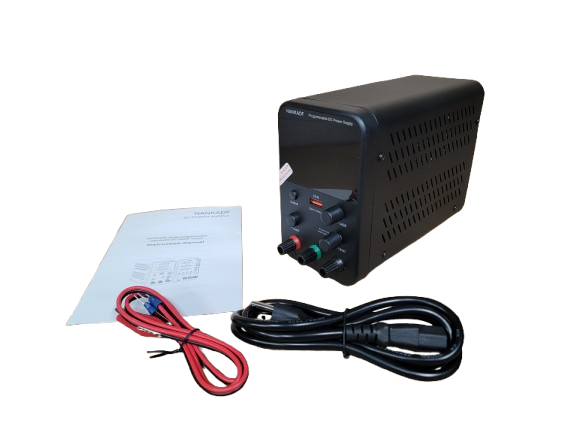

WHAT’S INCLUDED

• AECharger™ Programmable DC Power Supply

• AC power cord (115V / 230V selectable)

• Output lead set with alligator clips

• Printed instruction manual

---

FAQ SECTION

Q: Is this a lithium battery charger?
A: Yes. The AECharger can charge lithium batteries when configured correctly. You manually set voltage and current based on the battery manufacturer’s specifications.

Q: Does it work with AGM and lead-acid car batteries?
A: Yes. It works very well for AGM, SLA, and traditional lead-acid automotive batteries.

Q: Is this safe for beginners?
A: This charger is best for users with basic electrical knowledge. It is not a “plug-and-play” smart charger.

Q: Does it automatically stop charging?
A: It transitions from constant current to constant voltage automatically, but does not automatically shut off. Monitoring is recommended.

Q: Can I use this as a bench power supply?
A: Yes. It is designed to function as both a charger and a regulated DC power supply.

---

COMPARISON SECTION

AECharger vs Typical Smart Charger
